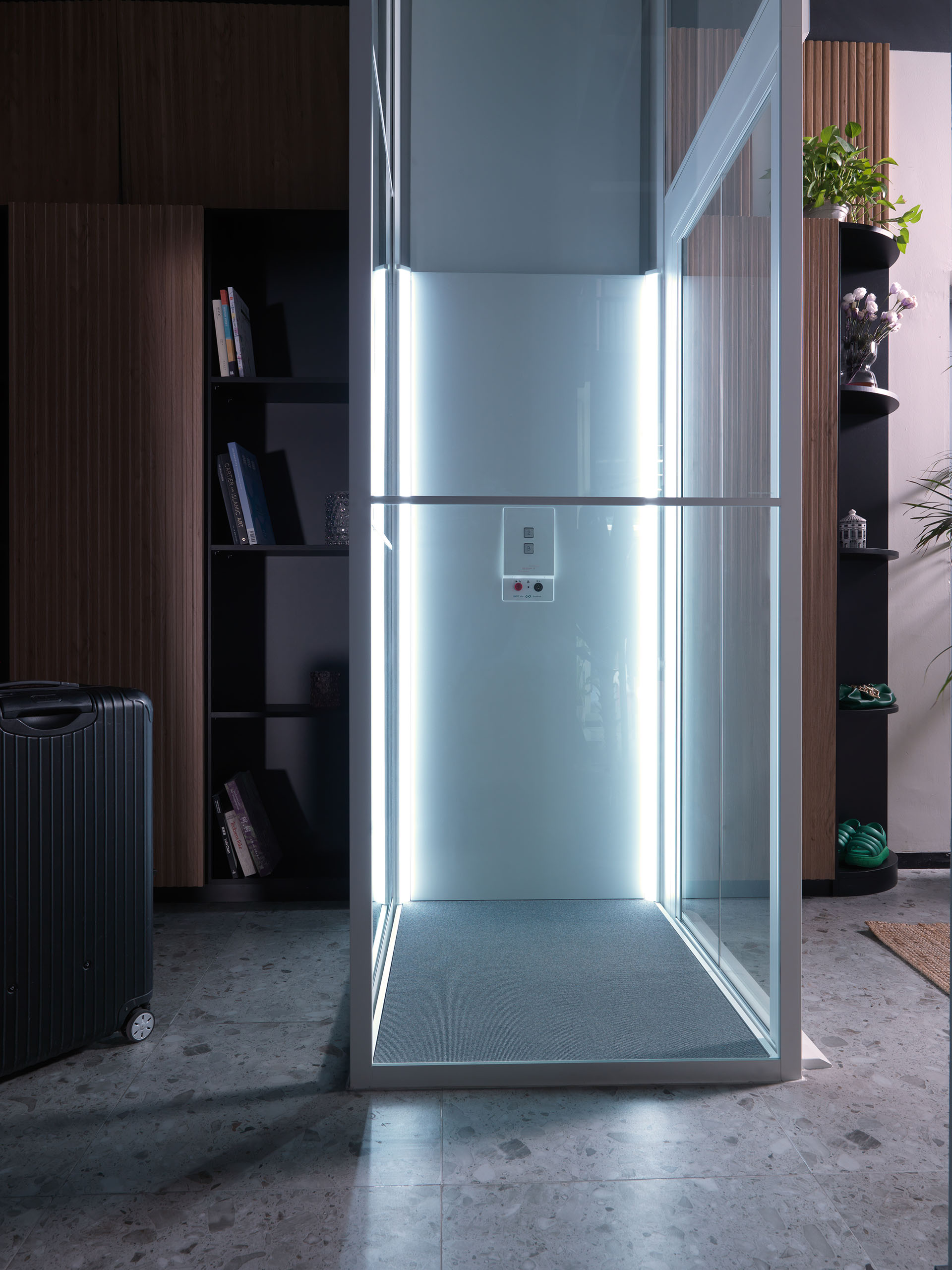

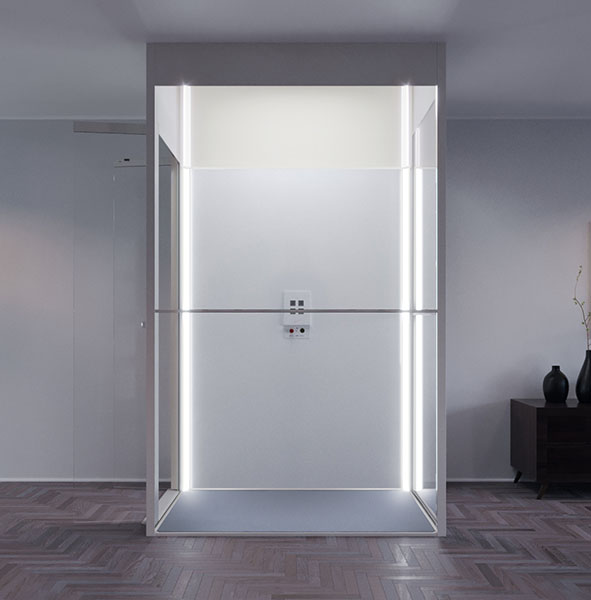

SWIFT Lite

A home lift that meets a limited budget without compromising on style and convenience.

You can choose from up to 2 colors for your elevator walls

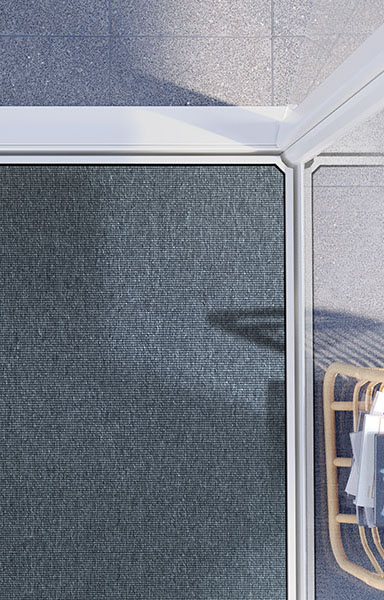

Carpet

We offer a choice of 2 different carpet options for your lift floor, all designed and manufactured by Ege Carpets, a company from Denmark. They are one of the leading high-quality carpet manufacturers in Europe. These carpets are made using ECONYL© microfiber, which is produced from recycled ocean plastic.

Specification

Recommended installationIndoors/outdoors
Rated load250 kg , 500 kg
Rated Speed0.15 – 0.30 m/sec
Height limitstop Height 2275 mm
Pit depth50 mm
Stop5 Stop

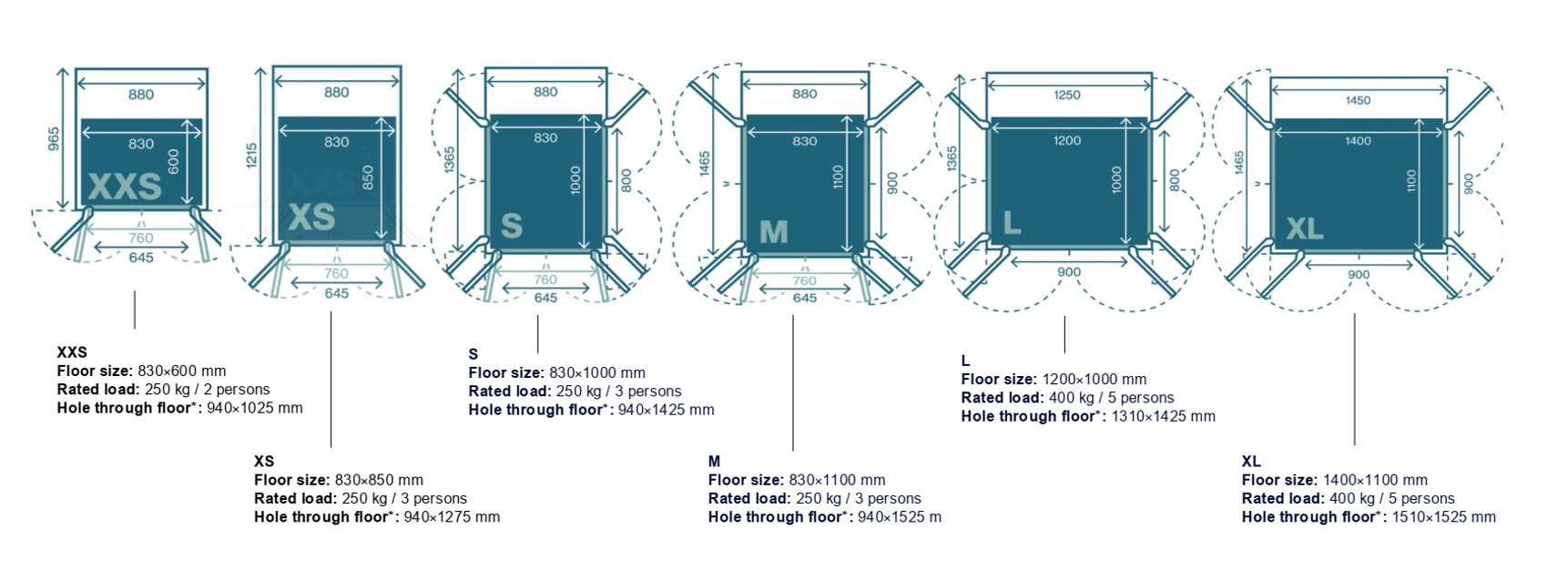

Standard platfrom size ( W x D )830×600 mm, 830×850 mm, 830×1000 mm, 830×1100 mm, 1200×1000 mm, 1400×1100 mm
DoorsSwing doors, doors can be on 3 sides
Drive systemScrew and nut
Control systemThor EngineeringTM
Power supply230 V 1-phase 6 A (8 A fuse)
Motor3 kW
CertificationCE marking 2006/42/EC (Machinery Directive)
Manufactured inSweden

Download

Brochure SWIFT
