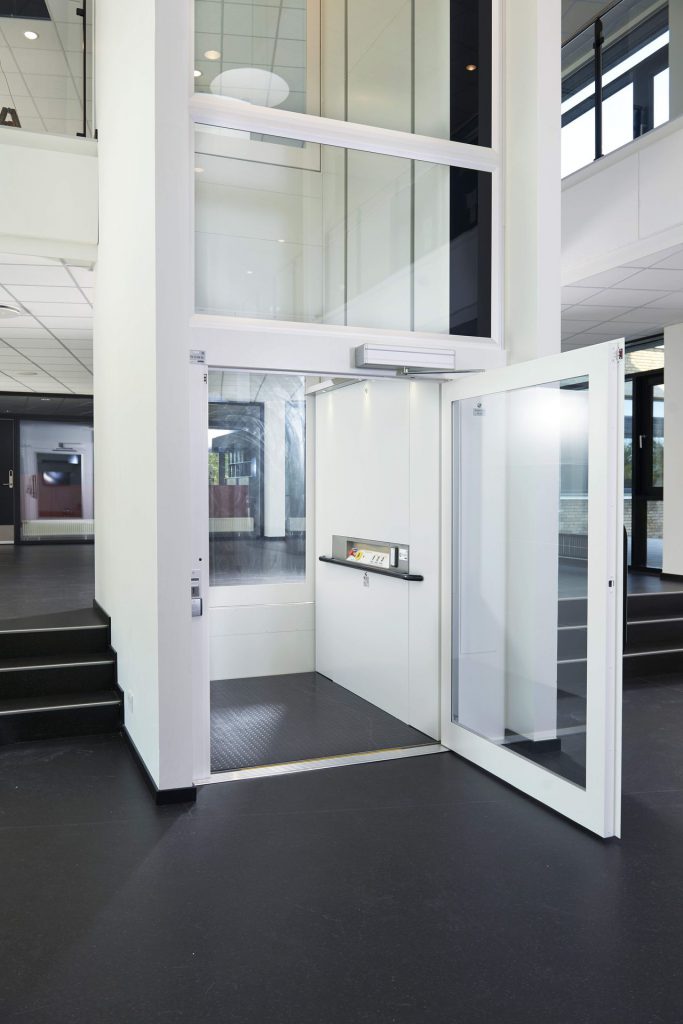

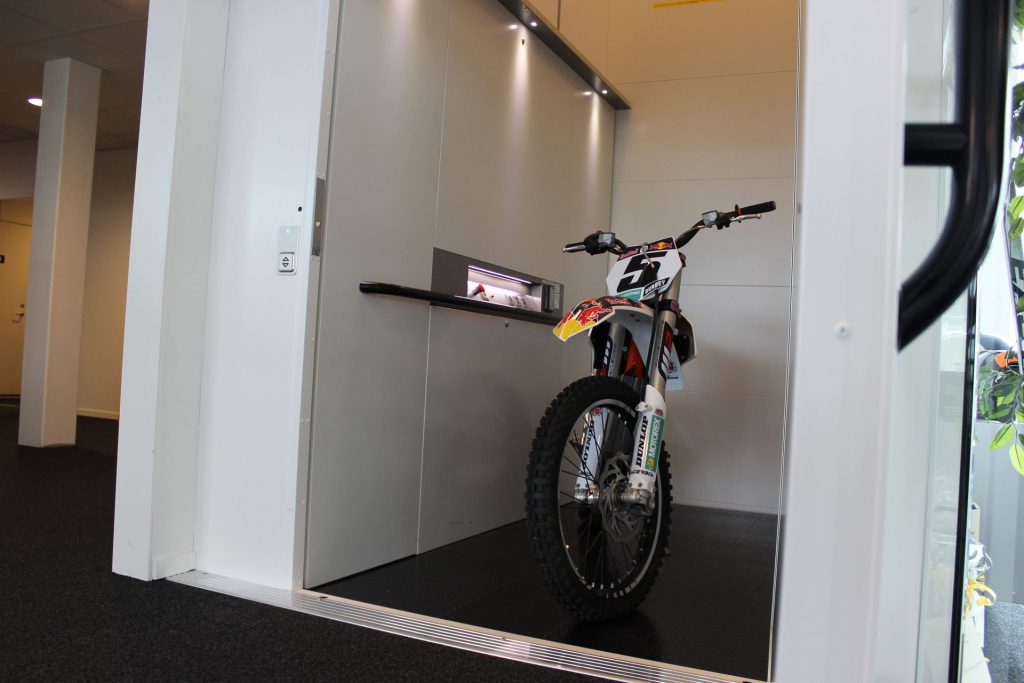

ILS 1K

The ultimate lift platform, capable of carrying loads up to 1,000 kilograms.

Available in multiple sizes for your convenience

We offer a wide range of platforms, with up to 55 sizes for you to choose from according to your needs.

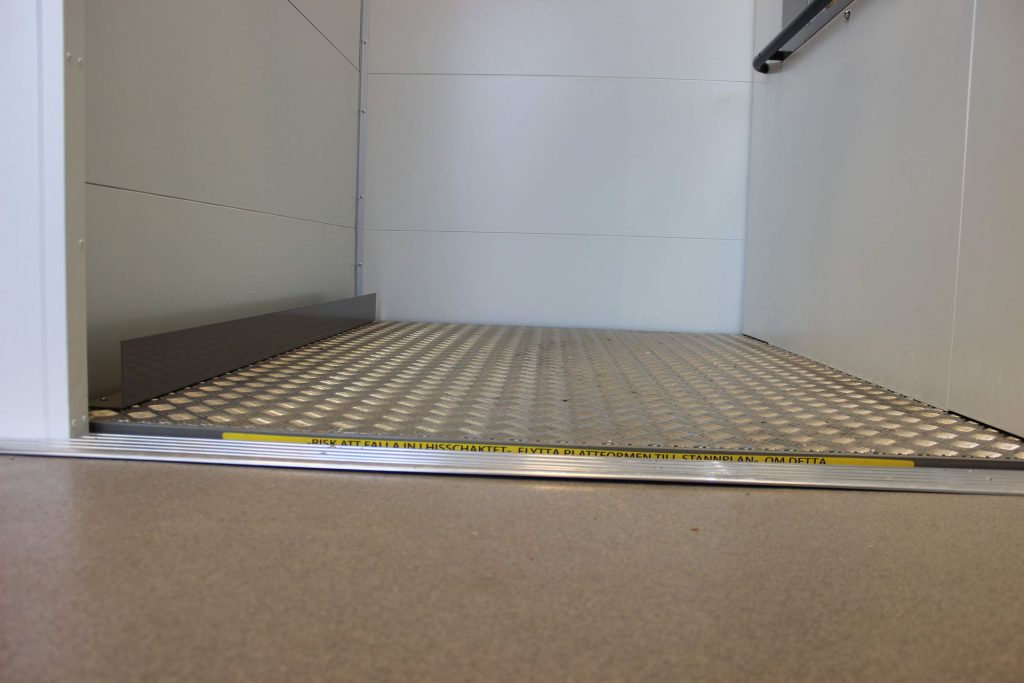

Compact lift pit, saving floor space

Requires only 110 millimeters of space for the lift pit.

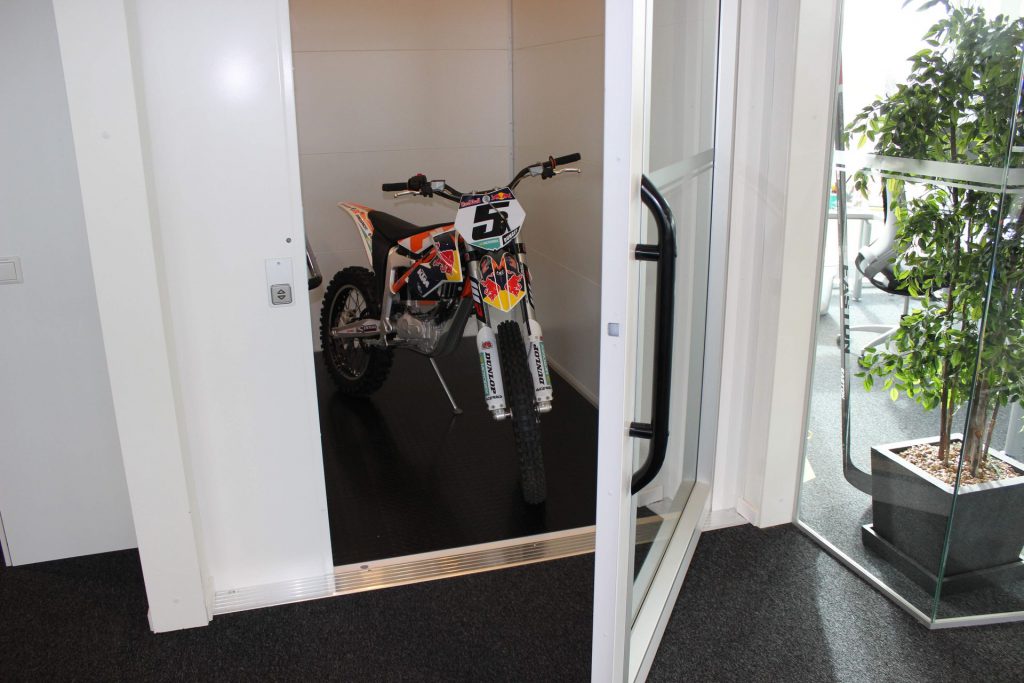

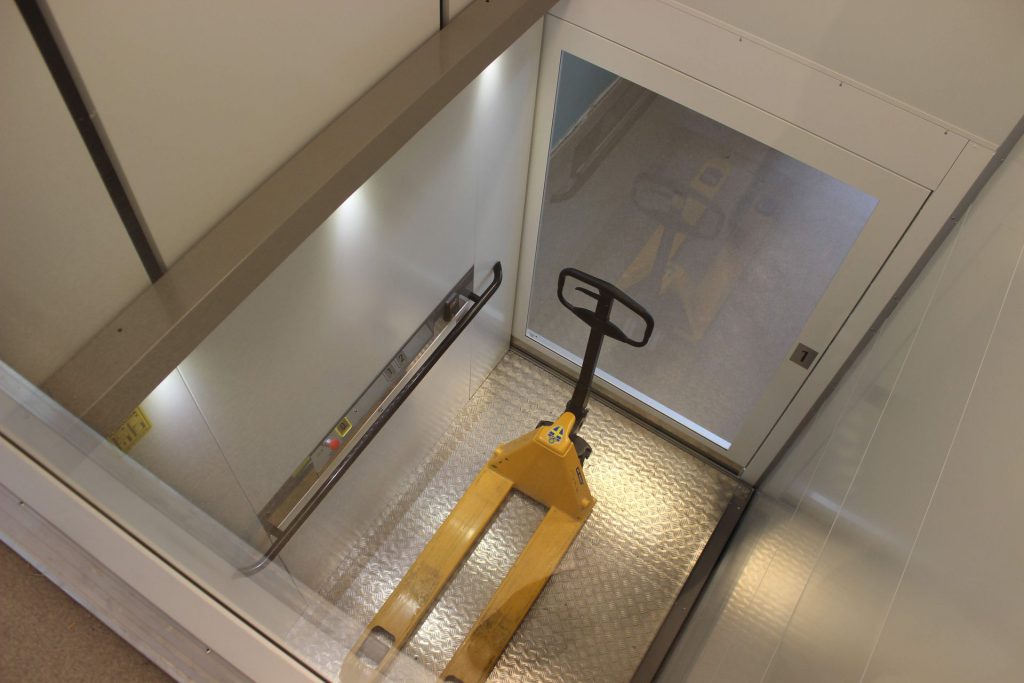

Capable of carrying weights up to 1,000 kilograms

Comes with a modern full-height platform design.

Moves smoothly and seamlessly

With a sophisticated control system.

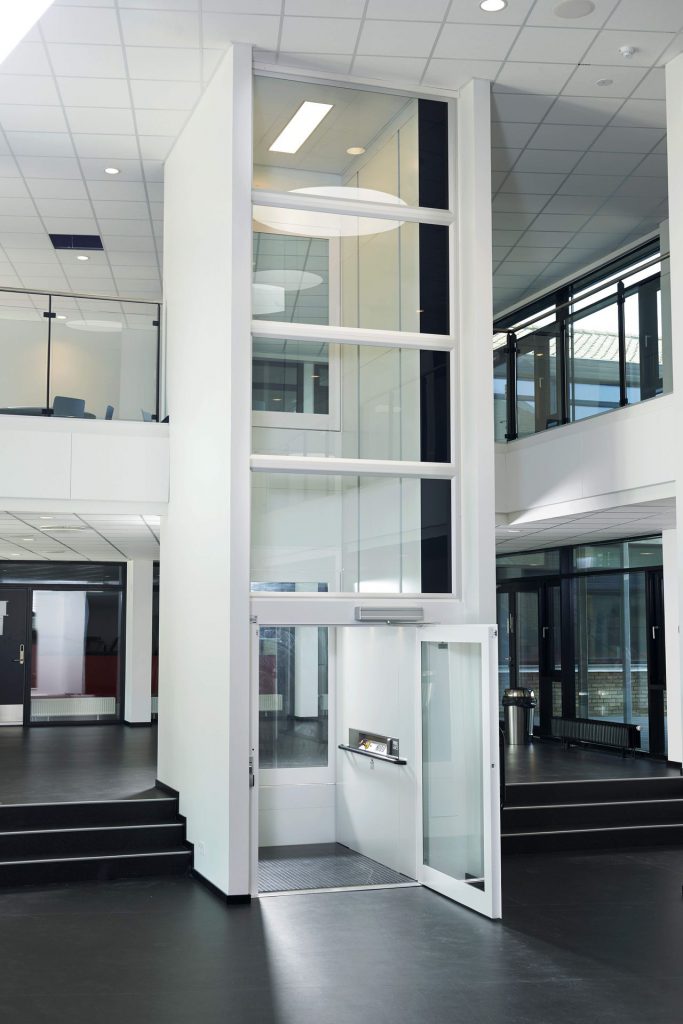

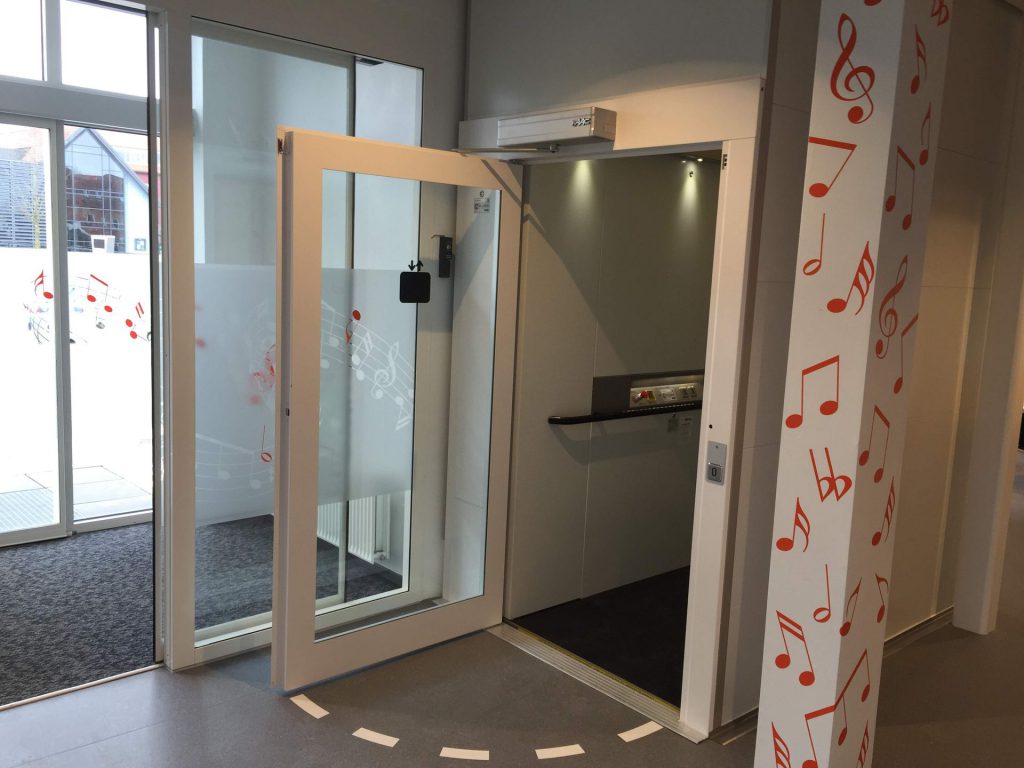

Beautiful and luxurious

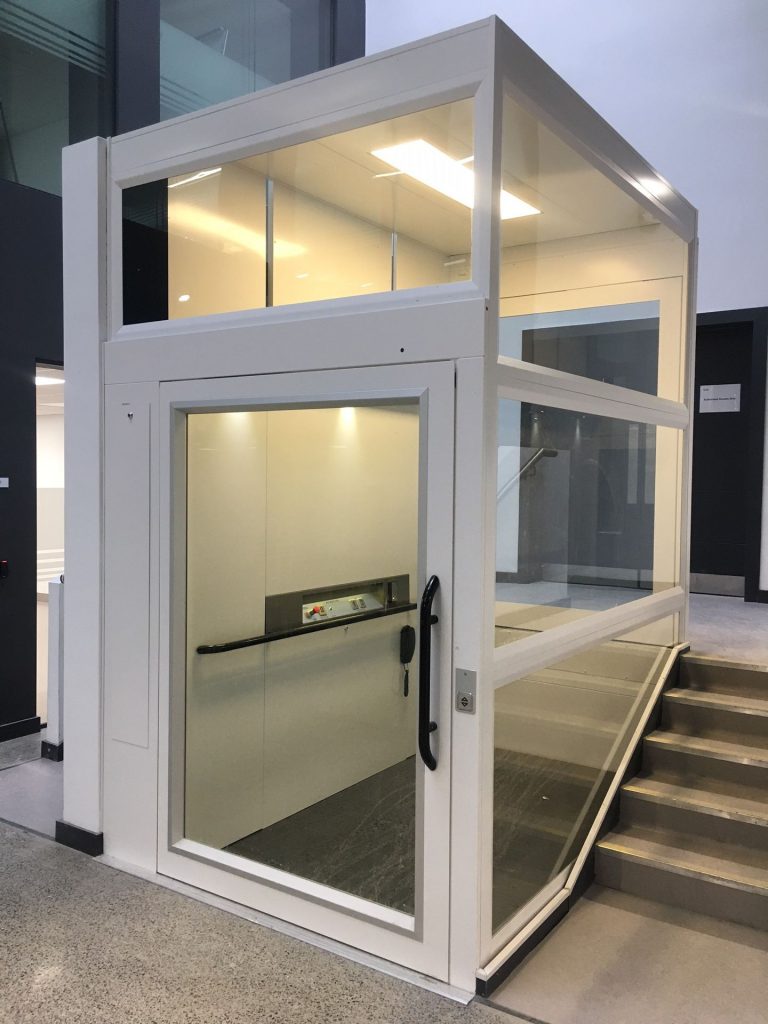

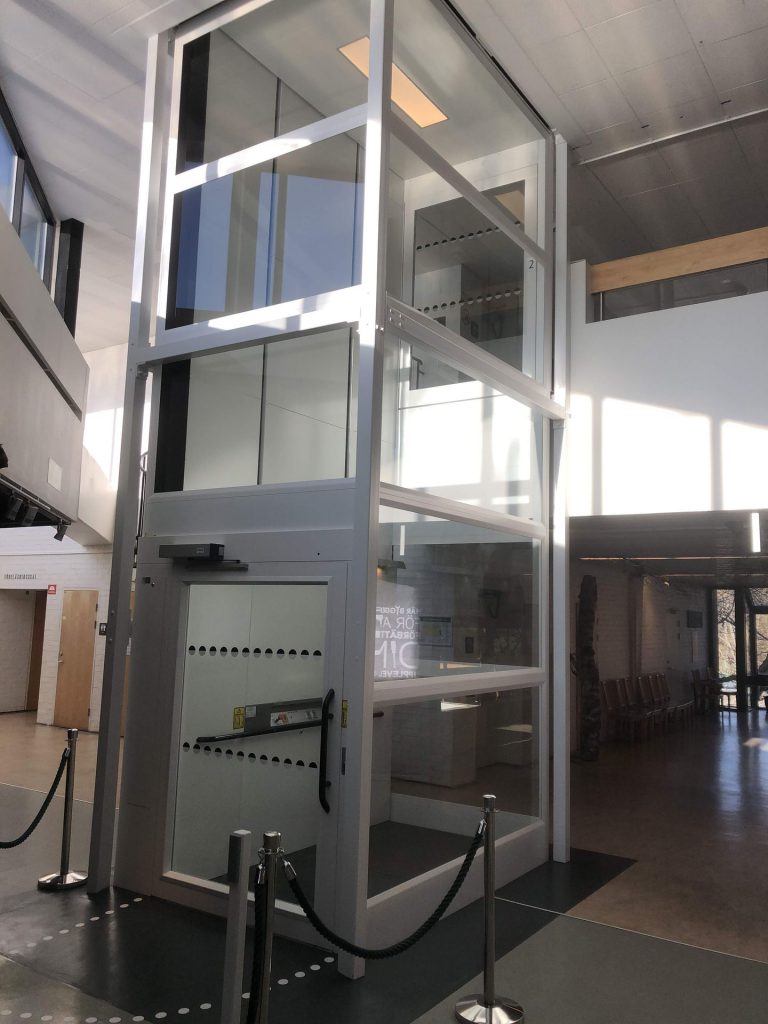

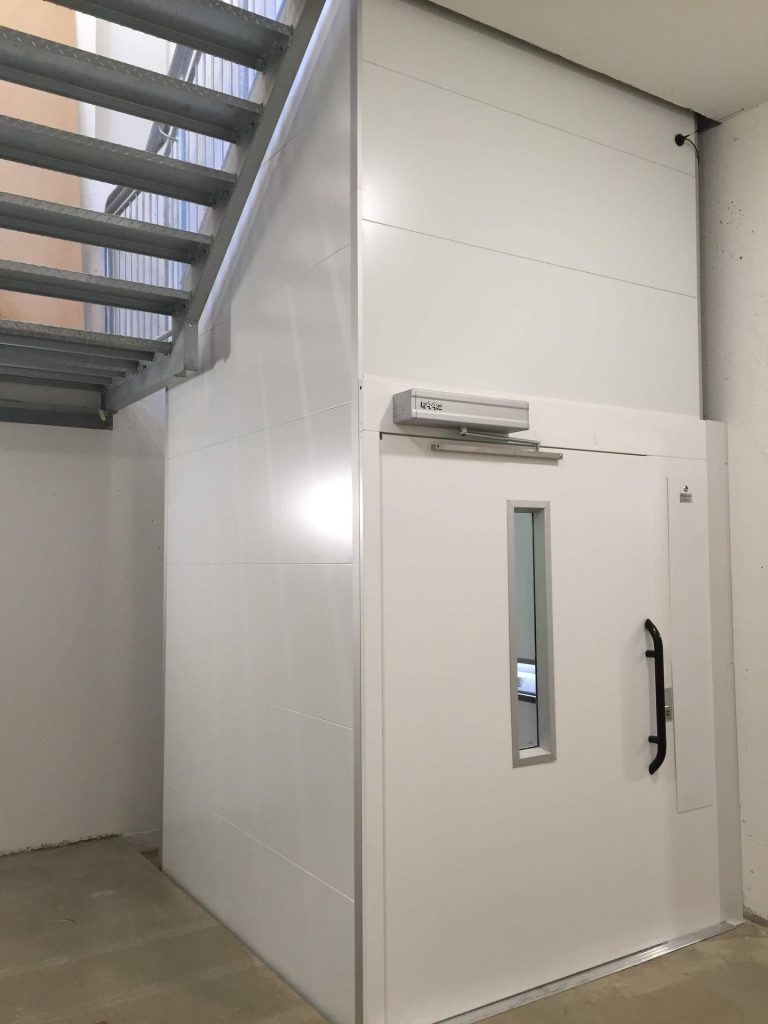

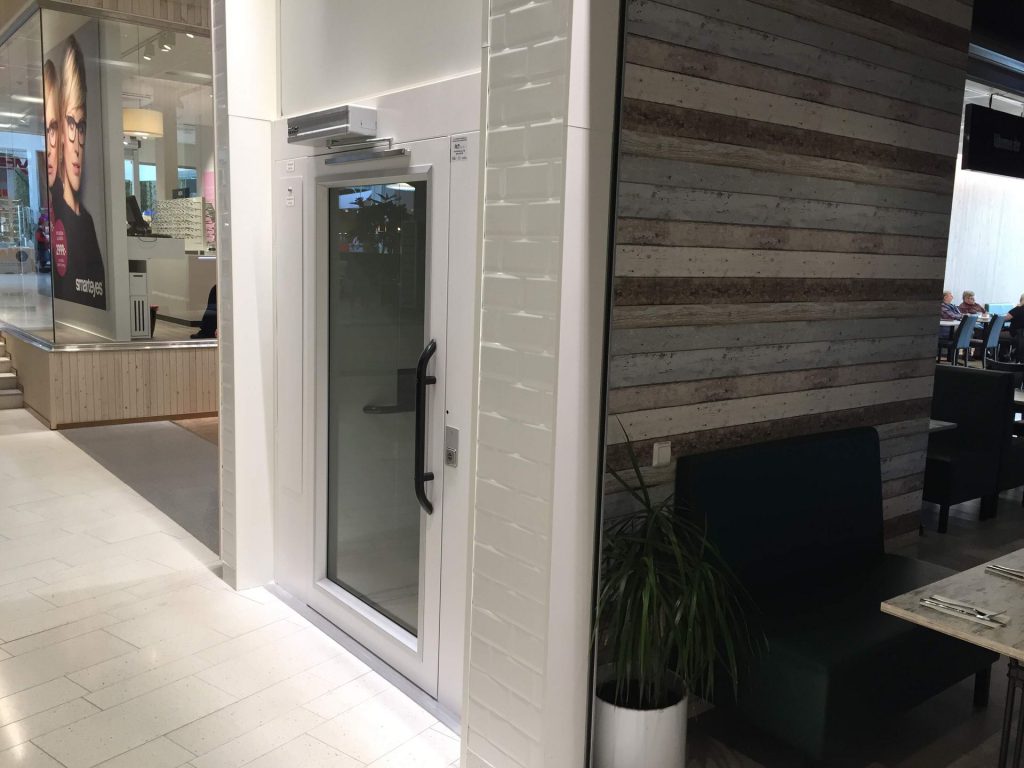

With customizable options for both solid and glass elevator walls.

Easy, quick, and cost-effective installation

With Plug n’ Play system, installation takes only 2-4 days.

Specification

Recommended installationIndoors/outdoors
Rated load1000 kg
Rated Speedmax 0.15 m/sec
Height limitstop Height 2300 mm
Pit depth110 mm
Stop5 Stop
Standard platfrom size ( W x D )1400×1600 mm
DoorsPLC
Drive systemScrew and nut
Control systemPLC
Power supply380-400v 3phase 50/60 Hz 16A,frequency converter
Motor4 kW
CertificationCE marking 2006/42/EC (Machinery Directive)
Manufactured inSweden
